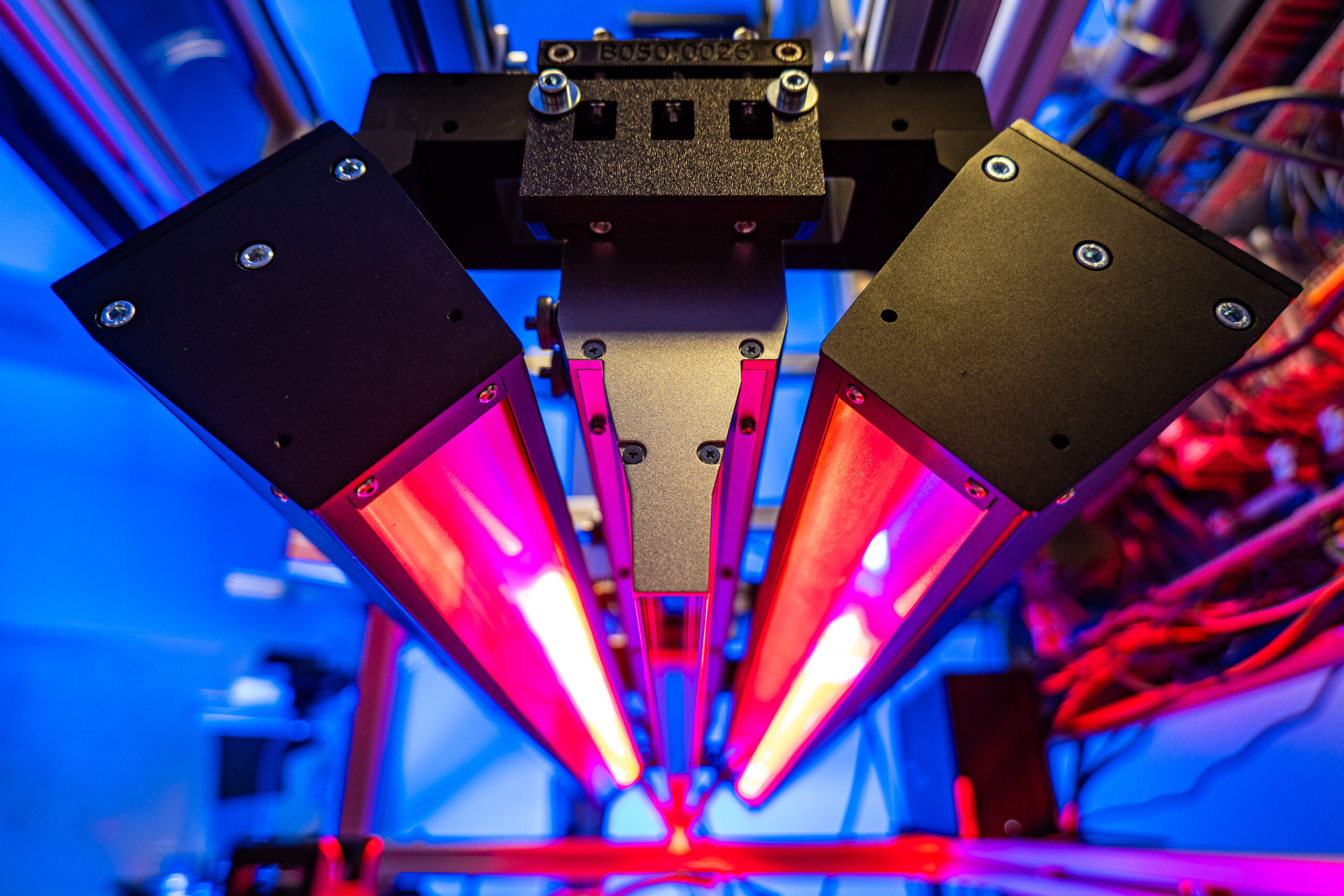

High-Speed Photometric Stereo with Contact Image Sensor (CIS)

CIS technology combined with multi-directional illumination for high-speed surface inspection.

Why using a CIS?
The CIS architecture combines imaging and illumination in a highly compact inspection unit. Its close working distance and integrated optical design make it especially suitable for applications where installation space is limited.

MultiChannel Technology

  • Acquisition of up to 10 different illumination setups within a single pass of the sample using one or many monochrome line scan cameras or a compact CIS setup.
  • Mixed flow of image data is rearranged within the framegrabber without CPU load →  due to the negligible offset no complex merging is needed
  • Based on out “of the shelf” components  (e.g. programmable framegrabbers from BASLER)
  • Easy software integration using standard GenICam interfaceMaximum Bandwidth per camera: 4.8GPixel/s (CoaXPress) 800 MPixel/s (CameraLink)
  • Maximum Bandwidth per camera: 4.8GPixel/s (CoaXPress) 800 MPixel/s (CameraLink)

Multi angle / Multi structure / Multi spectral …

  • Brightfield, darkfield, reflection
  • Different wavelengths
  • Photometric Stereo
  • Phase-measuring Deflectometry
  • Structured light imaging
